Eight-Channel Wall Mount Antenna Amplifier
Distributor host parameters

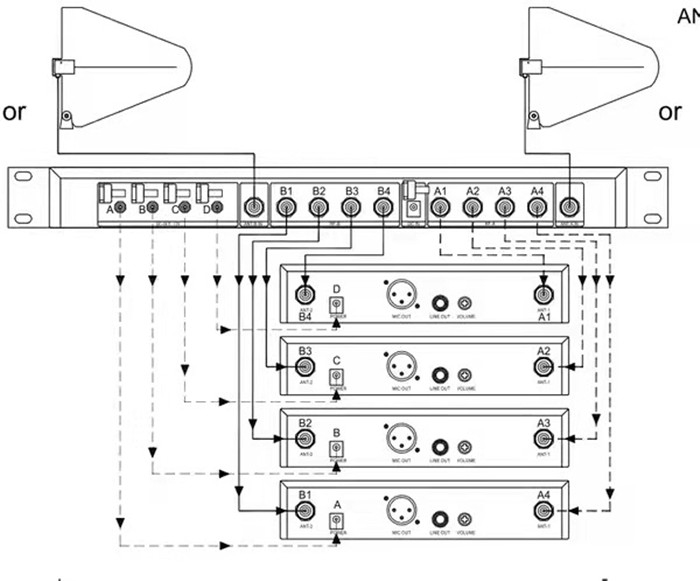

The 848 Antenna Splitter is a full-channel UHF antenna splitter that steers the antenna signal from a pair of antennas to multiple receivers in a multi-channel system. The splitter amplifies the RF signal to compensate for the attenuation during the distribution process. The external 5A switching power supply can provide four groups of 12v DC power to the wireless receiver. A single antenna splitter mainframe can support up to 8 antenna channel ports.
848 antenna host frequency response 450 ~ 970MHZ
Impedance: 50 ohms
Input AC voltage: 100-240v
Output DC voltage: 12v four groups of DC output terminals
Antenna amplifier voltage: 12v

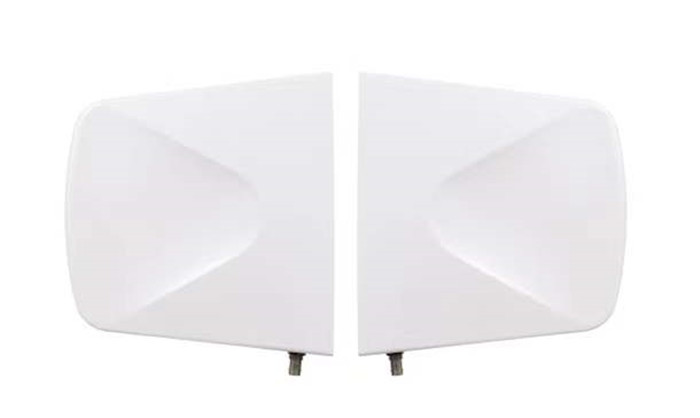

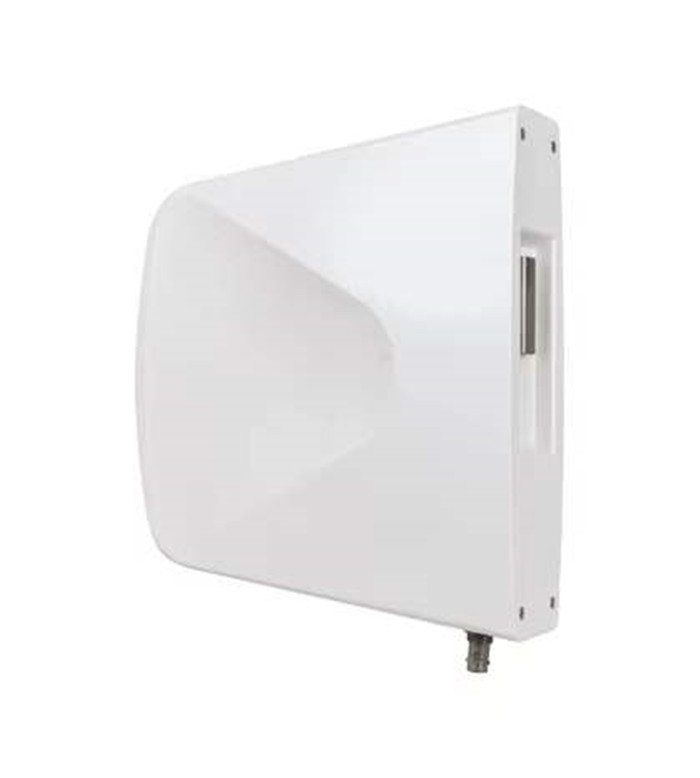

Active directional antenna technical parameters:
The directivity feature uses a log-periodic dipole array to provide the best reception when facing the desired coverage area. The integrated amplifier has four gain settings to compensate for different levels of coaxial cable signal loss. The antenna wing leaves can be attached to the microphone stand, suspended from the ceiling, or fixed to the wall using the integrated swivel bracket. The low-noise signal amplifier can compensate for the insertion loss of coaxial cables, is compatible with wireless receivers and antenna distribution systems, and can provide 10-15 VDC bias.
Product high quality, high reliability and durability unidirectional antenna
RF frequency range: 450-950MHz
