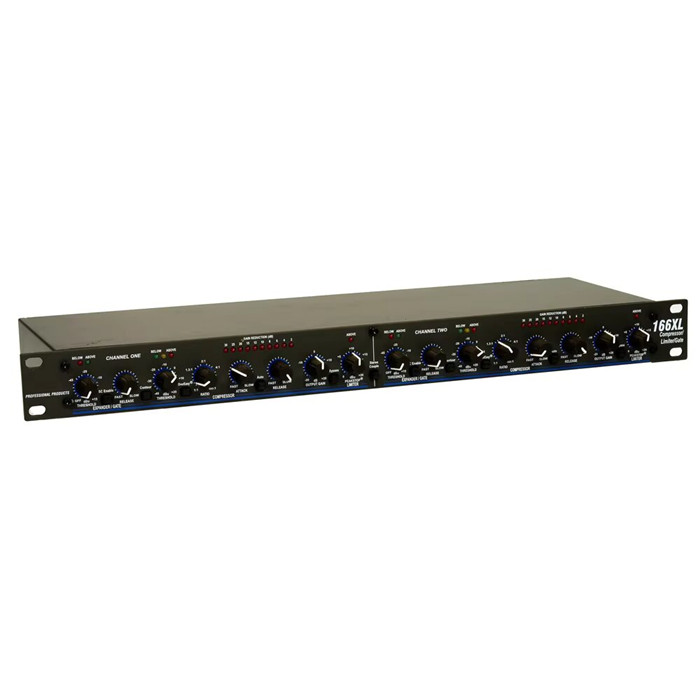

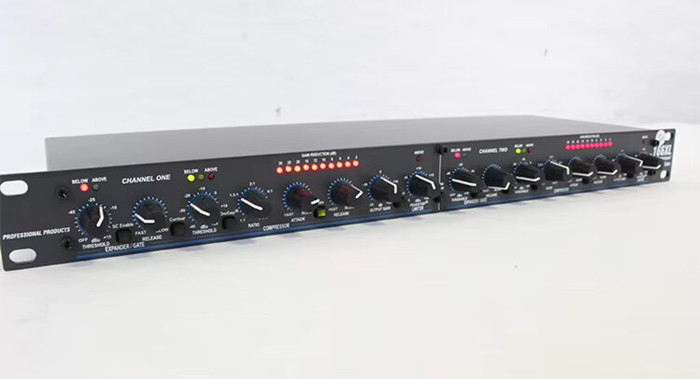

TKG 166XL Dual Channel Compressor Limiter

Product Show

Specification:

Input Connectors: 1/4″ TRS and XLR, Floating Balacned; XLR: (pin 2 hot)

Input Impedance: 50kΩ balanced, 25kΩ unbalanced

Max Input: +24dBu, Balanced or unbalanced

CMRR: 40dB at 1kHz , typically 55dB

Sidecahin: 1/4″ TRS Phone , Normalled : Ring= Output (send); tip=Input (return)

Sidechain Impedance: Tip=10kΩ (input), Ring =2kΩ(output)

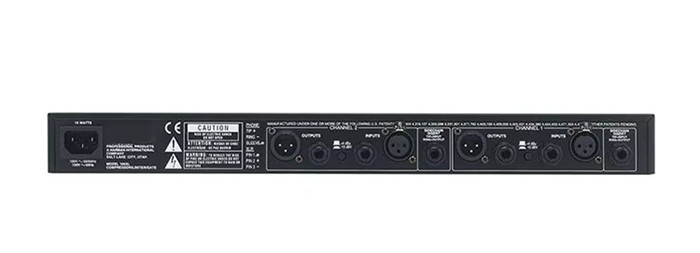

Output Connectors: 1/4″ TRS phone and XLR floating balanced, XLR: Pin 2 and Tip Hi

Output Impedance: 120Ω balanced, 60Ω Unbalanced

Max Output: +21dBu , +20dBm into 600Ω, balanced or unbalanced

Frequency Response: 20Hz to 20kHz

Compressor ratio: Variable program-dependent;200dB/sec to 3dB/sec

Expander/Gate Ratio: 10:1

Expender Max Depth: 60dB

Power Consumption: 15 Watts Maximum

Dimensions: 1.75″× 19″× 6.75″ (4.45cm×48.2cm×17.15cm)
