96 KHZ sampling frequency, 32 – bit DSP processor, 24 – bit A/D and D/A conversion 2 provide USB and RS485 interface can connect the computer, through the RS485 interface can be connected at most 250 machines, and ultra-high have RS232 serial interface, convenient applications require different situations, and more than 1500 metres for external use computers to control 4 directly with the function of the panel and the functions of the code wheel set or connection controlled by PC computer to control, are very convenient, it is intuitive and simple.
Hardware or PC control software can store 12 kind if user programs.
The password lock panel control function can be set through the SYSTEM button of the panel to prevent the operation of idle personnel from damaging the working status of the machine;
Each input has 31 sections of GEQ+10 sections of PEQ and output 10 sections of PEQ;

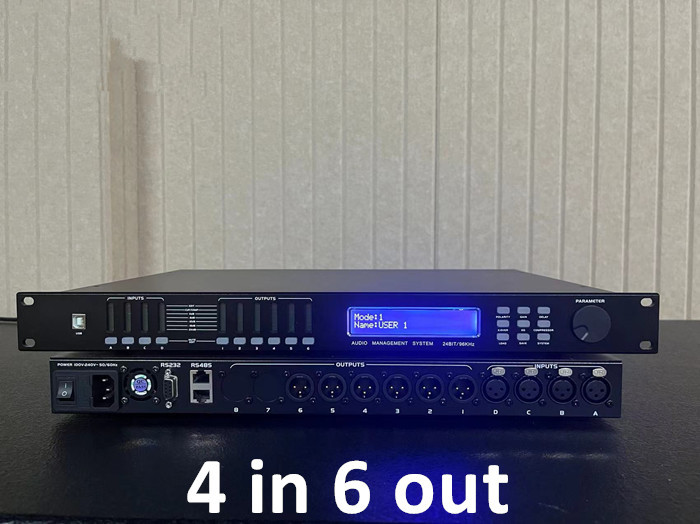

2*24 LCD blue backlight display function setting, 8-section LED display input/output precise digital level meter, mute and edit state;
The slope of the variable high/low pass filter can be set, in which Bessel and Butterworth are set as 12dB,18dB and 24dB per frequency, and linkwitz-riley is set as 2dB,18dB,24dB, 36dB and 48dB per frequency;
The parameters of the high/low pass filter can be independently controlled and mute setting. The delay can be up to 1000MS. The delay unit can be selected in MS, M and FT;
The output channel can also control gain, pressure limit and select input channel signal, and can select multiple output channel correlation and synchronously adjust all parameters.
