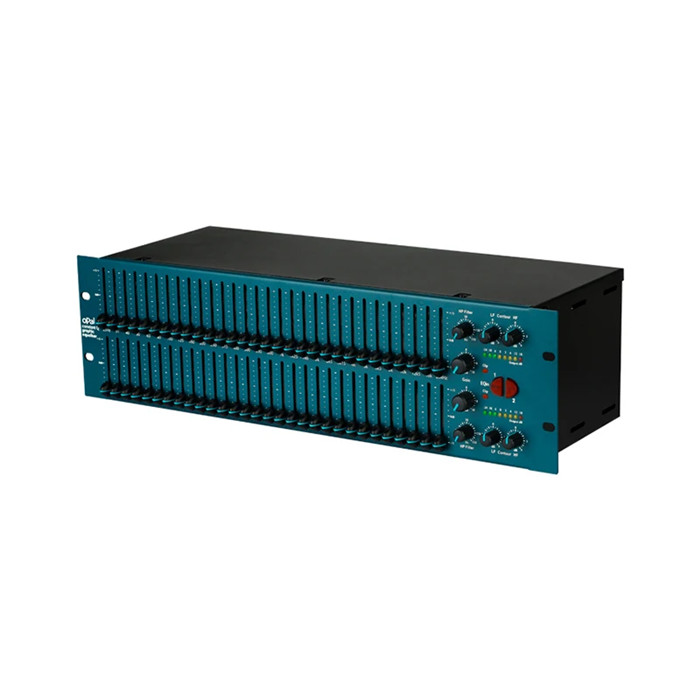

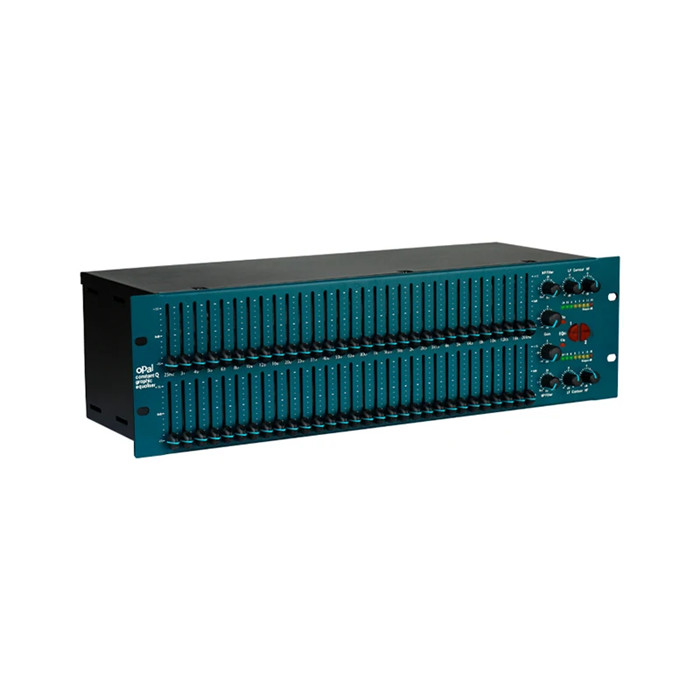

TKG BSS FCS966 FCS 966 Audio EQ High Pass Filter BSS FCS966 equalizer home audio karaoke dj equalizer

Product List

Product Show

Features :

Output section
Output Impedance: < 50 Ohms, electronically balanced
Maximum Output Level: >+20dBu into 600 Ohms

Filters
HP filter control: OUT to 250Hz @ 12dB/octave
LF contour: +/-6dB shelving @ 50Hz 6dB/octave
HF contour: +/-6dB shelving @ 14kHz 6db/octave
FREQUENCY bands: +/-15dB on ISO centres with a Q of 4

General Performance
Frequency Response: 5Hz to 45kHz +/-1dB
Noise: <-94dBu 22Hz to 22kHz
Dynamic Range: > 115dB
Cross Talk: >-80dB @1kHz
Distortion: <0.005%THD (80kHz measurement
BW) 20Hz-20kHz.
GAIN control: +10dB to -infinity
Dimensions: 19″ x 5.25″ x 7.1″ (483mm x 134mm x 180mm)
Weight: 6.6lbs (3kgs), unpacked
AC Power: 110/240V AC, 50/60Hz, 30VA.
