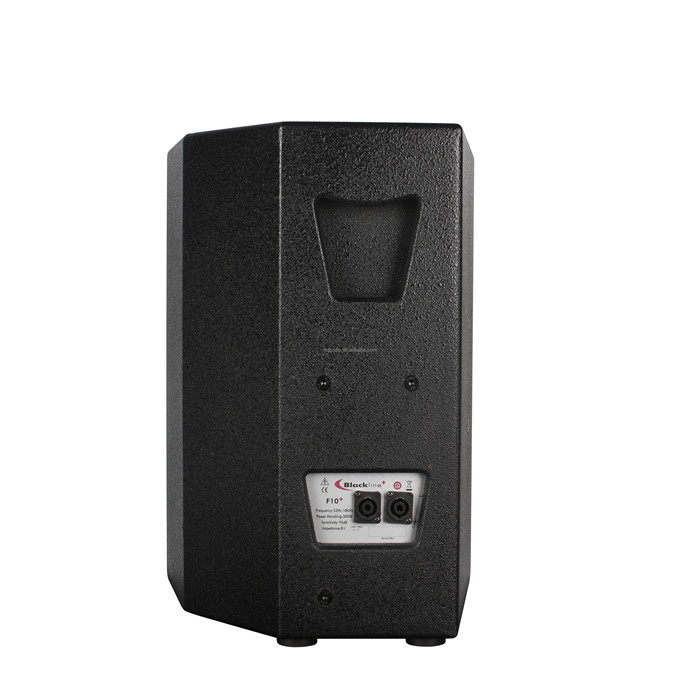

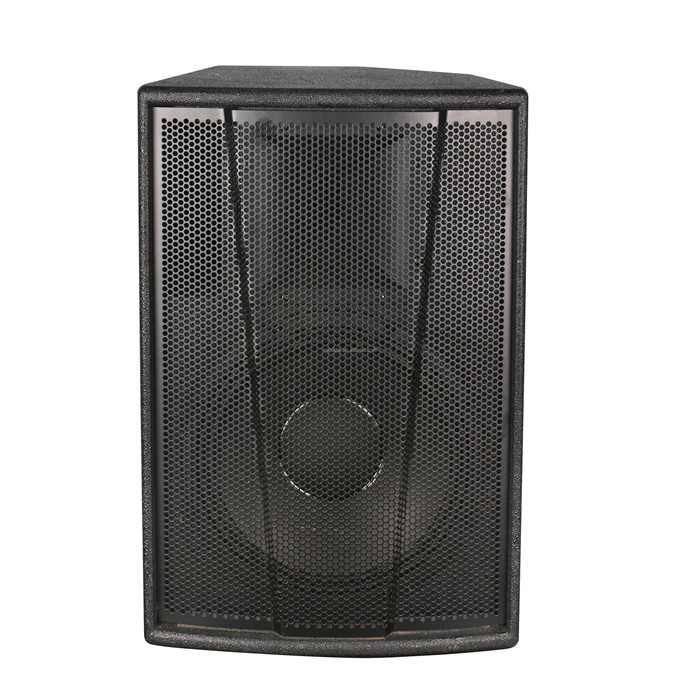

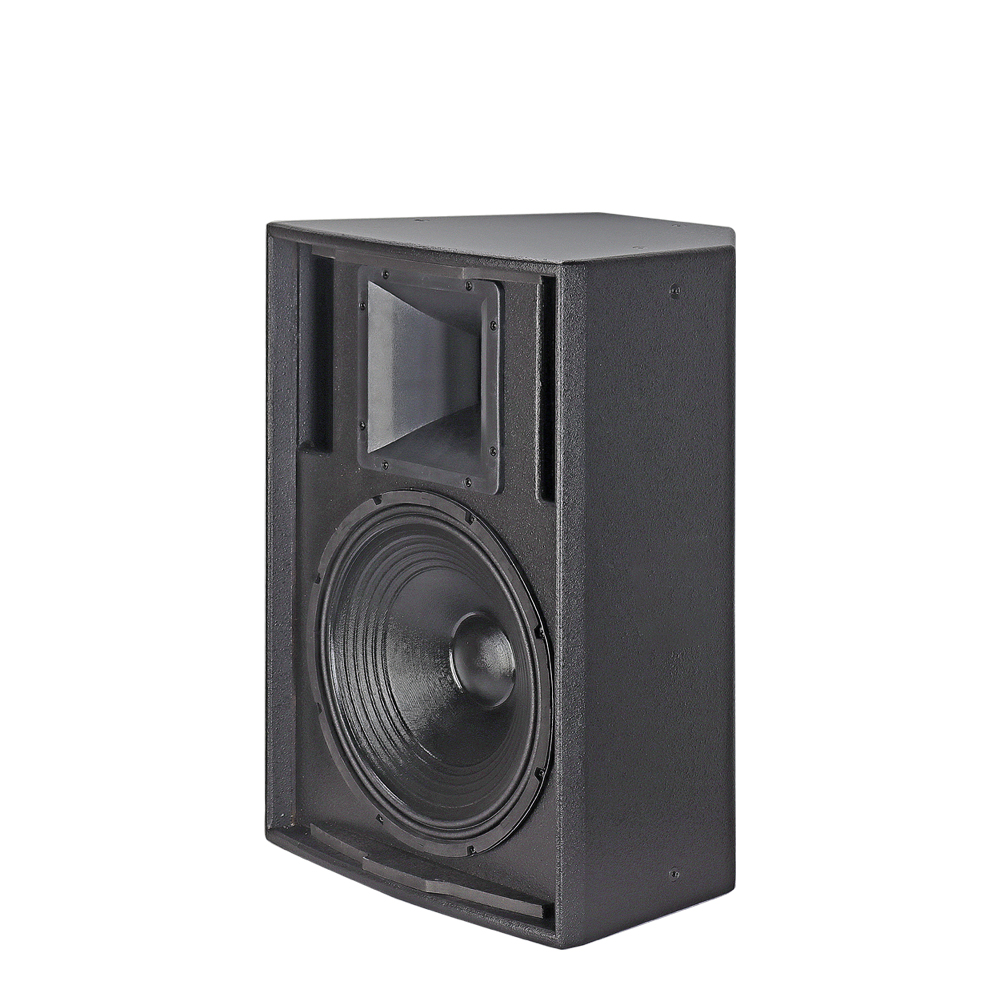

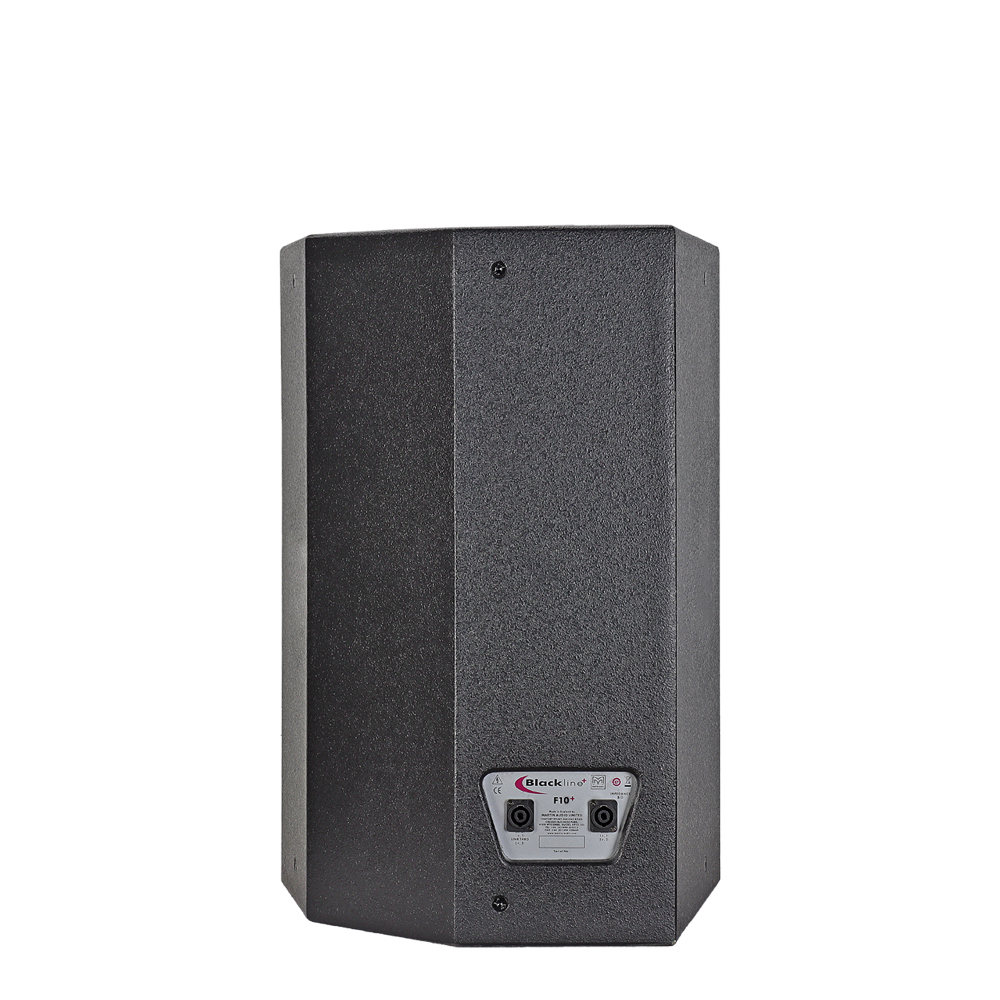

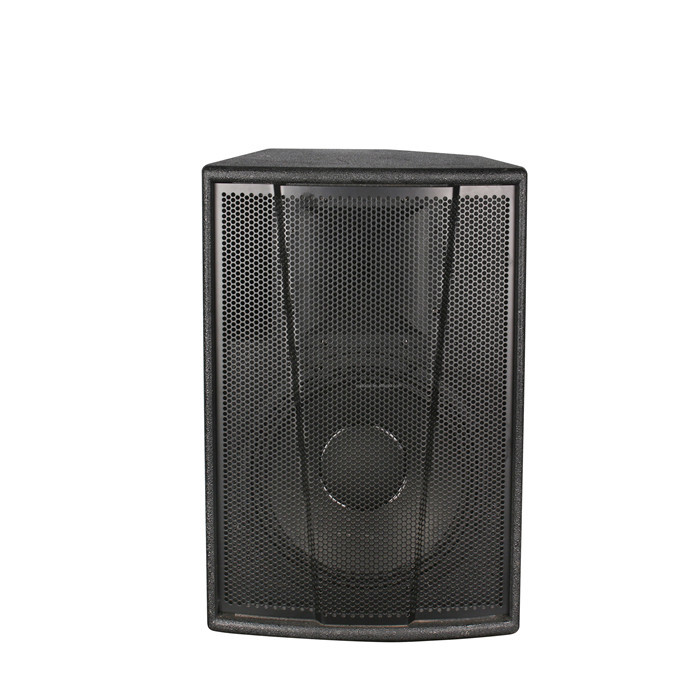

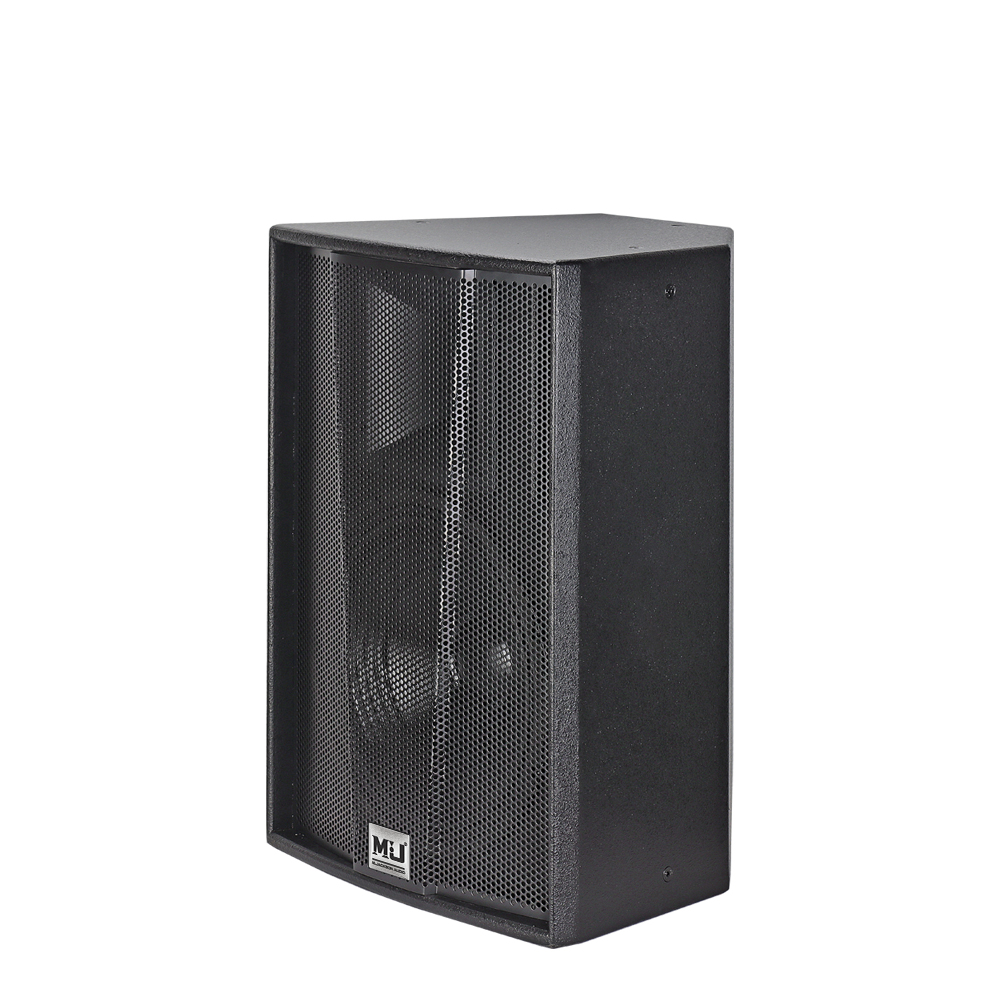

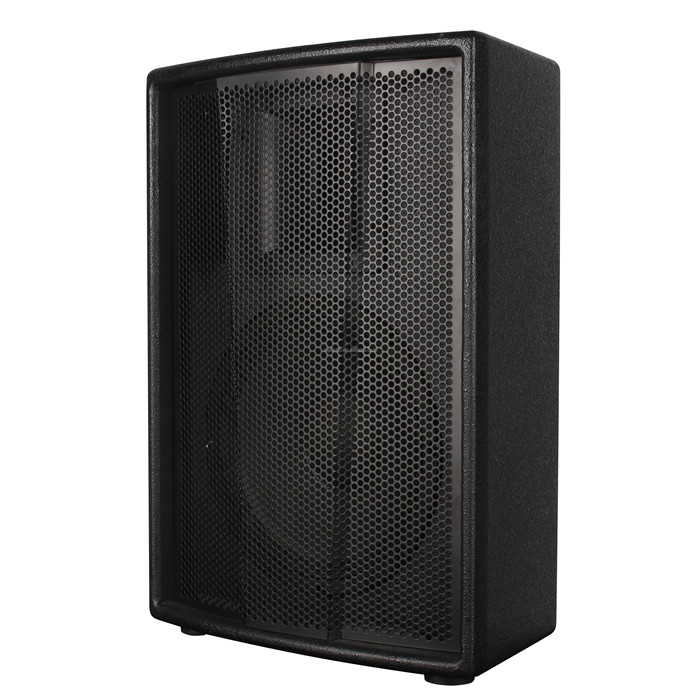

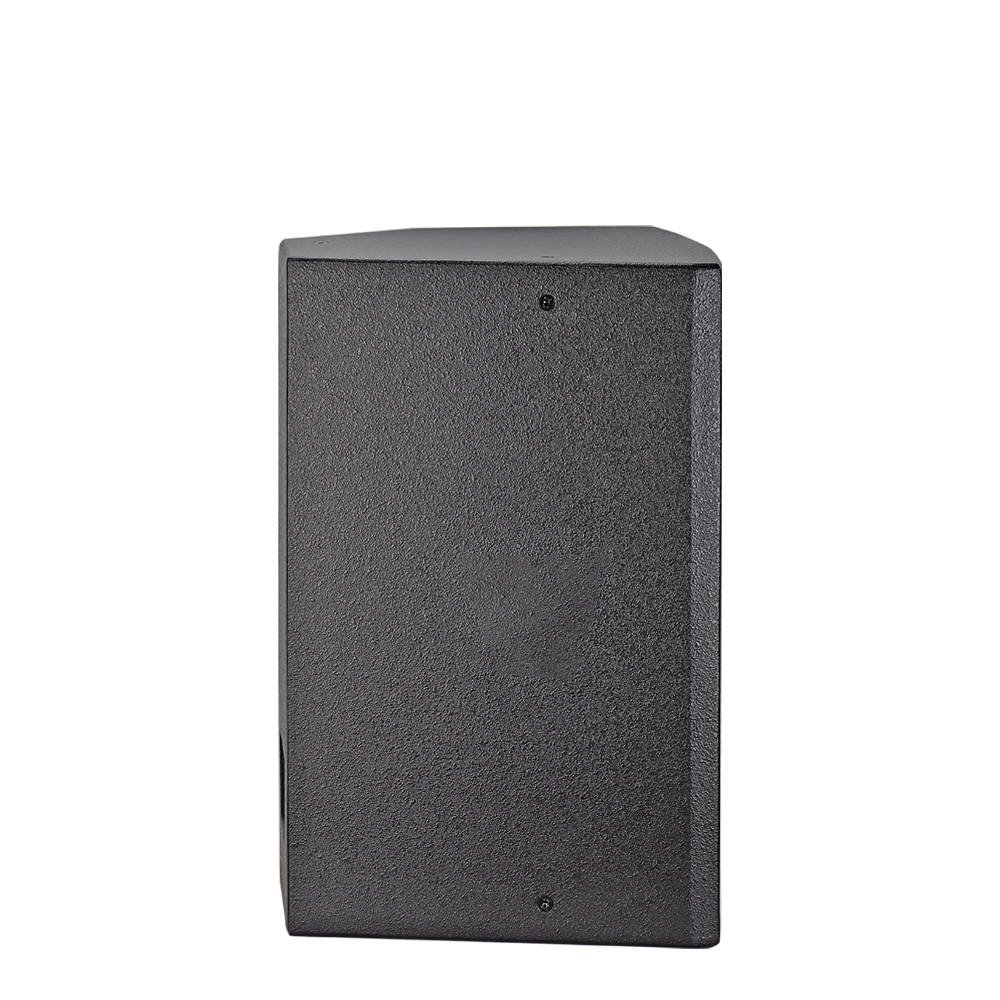

Model F10
Frequency Response (-10dB) 55Hz – 20 KHz
Max SPL (peak) 118 dB (calculated)
Sensitivity (1W/1m) 95 dB
Driver
1 x 1.75” titanium HF compression driver;
1 x 10” (25cm) long excursion ferrite Aluminum frameΩ driver
Impedance 8 Ohm
Powers(Nominal/Program/Peak) 300W/600W/1200W
Dimensions (WxHxD) 500x350x317 mm
Connectors 2x Neutrik Speakon
Net weight 17 kg
Shipping weight 19 kg
Mounting : Pole installation or M8 lifting point
Enclosure materials : MDF/plywood ; Water-based paint
Grill: Steel grill, polymere protective net
Corel: Black
 |
 |
