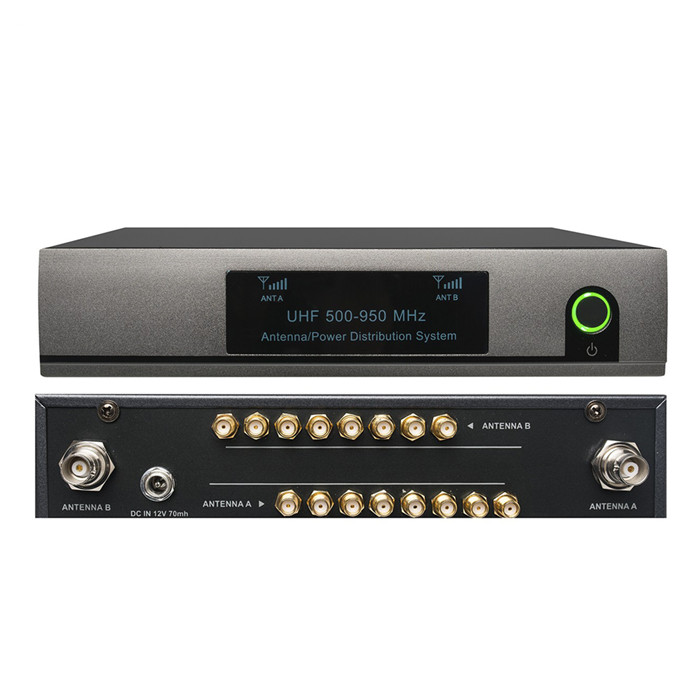

The product is a UHF antenna distribution system that can expand the signals
of the wireless microphone system by splitting one pair of the antennas to
wireless receiver.It also amplifies RF signals to compensate for insertion loss
that results from splitting signal power to multiple outputs.And can supply the
power port to the UHF wireless system.

2.System function

1)Expansion capability

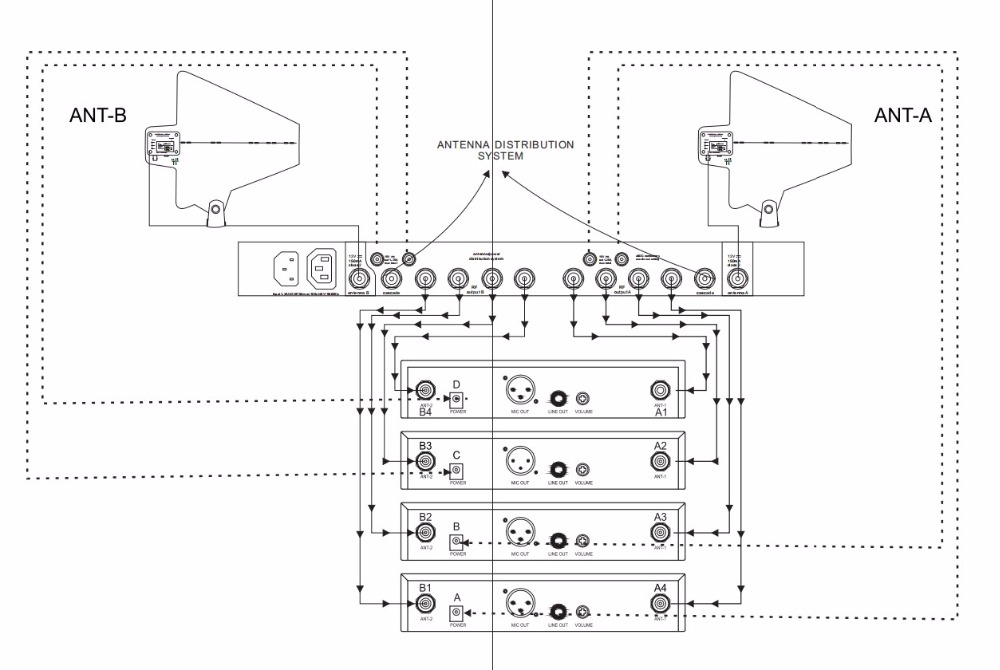

Antenna distribution system is used for large UHF wireless system,four wireless receivers can use two same antennas for every unit.Cascade port can
receive the 5th receiver or the 2nd antenna distribution system.
2)Campatibility
Antenna distribution system and all wireless microphone that work in the compatibility frequency area are compatible.
3)Cascade port

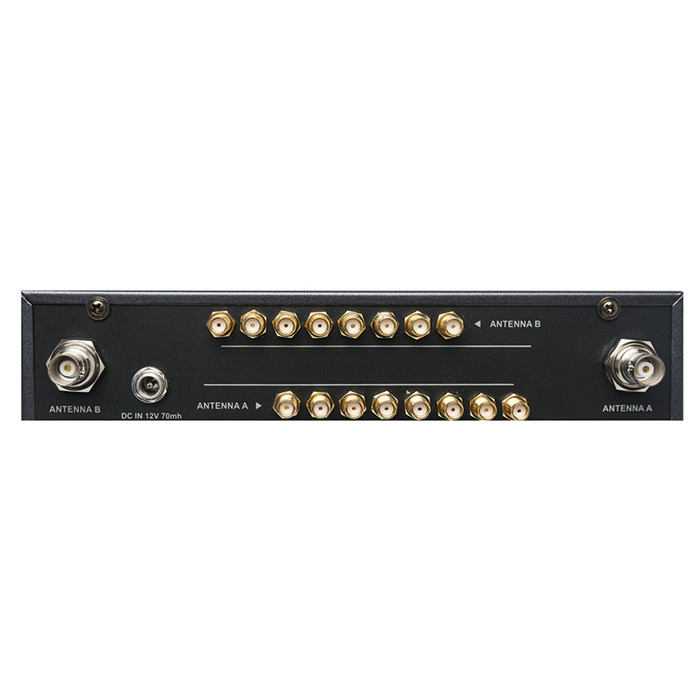

Two 50ΩBNC antenna cascade port can extra connect one antenna distribution system or the fifth wireless receiver.The large wireless system can work by
1 pair antenna.

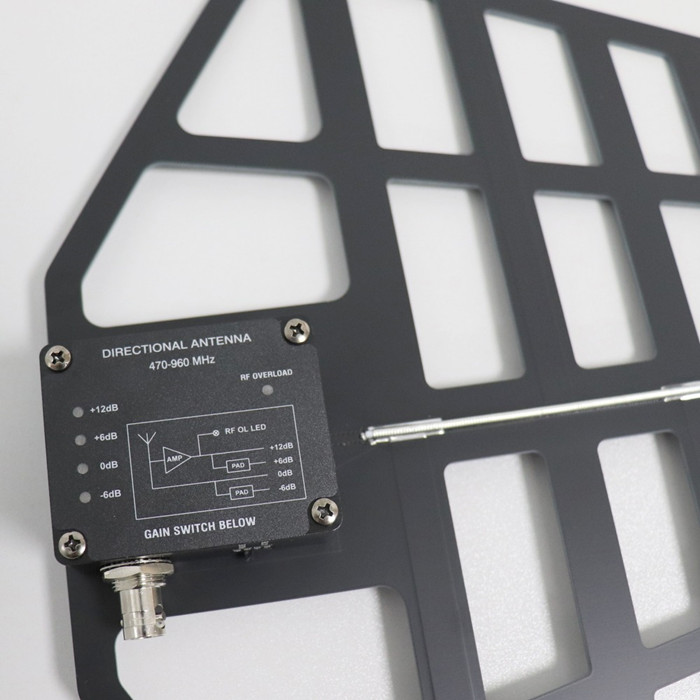

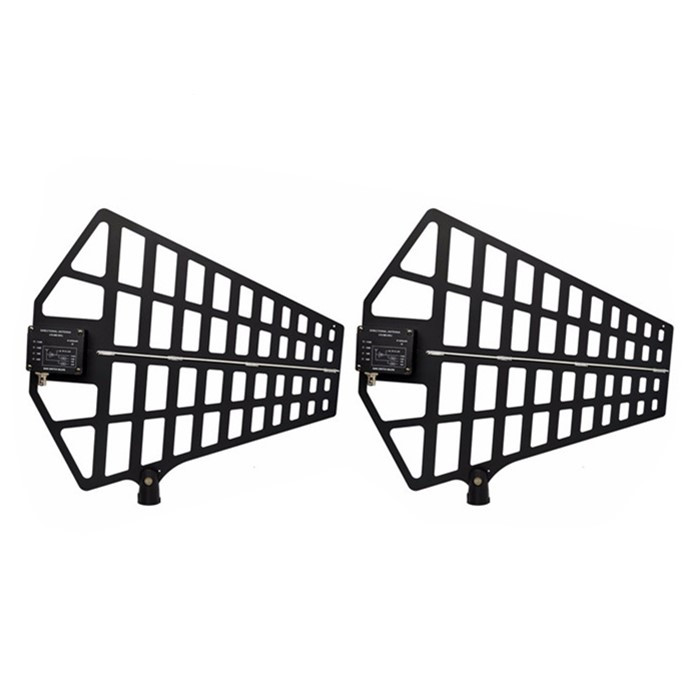

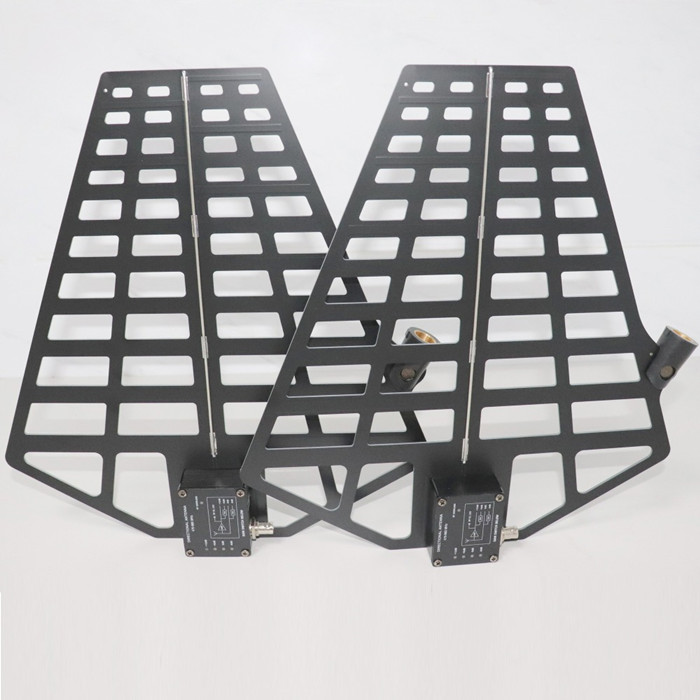

Active Directional antenna technology index:
Antenna Type Log periodic dipole array antenna
RF Frequency band 500-950MHz
Working voltage 10V DC
Impedence 50Ω
Connector Type BNC
Antenna Gain 7.5dBi

Antenna Distribution System Technology Index
Carrier Wave frequency band 470-960MHz
Input/output antenna connector type BNC
Impedence 50Ω
Output external power supply DC 12V 800mA
