TKG audio 650-655mhz Stereo In Ear Monitor Wireless Stereo monitor system Professional Audio Equipment Personal Stage

Technical parameter：

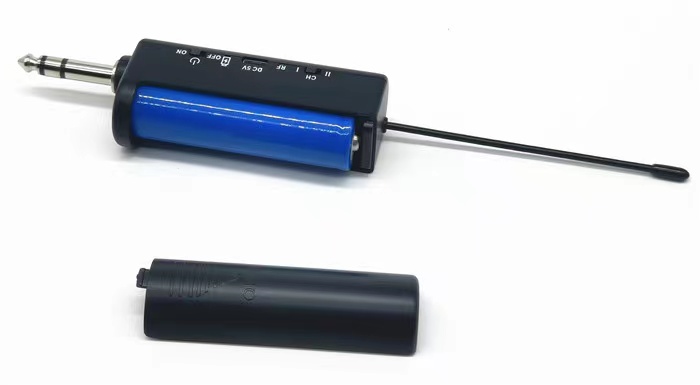

TX: RF carrier: 650-655MHz

Number of channels: 2

RF output power: 10MW

RF output impedance: 50 Ω

Modulation: digital modulation (GFSK)

Sampling rate: 46.875khz

Resolution: 24Bits

Audio dynamic range: 103dB + A

Audio signal-to-noise ratio: 109dB + A

Typical value of delay: 6ms

Audio processing mode: DSP

Audio response: 20-20KHz

FM mode: Manual

Audio input: 6.35 mm (1 / 4 inch) TRS stereo

Power requirements: 18650 lithium battery

Operating temperature range: – 30 ° C to 85 ° C

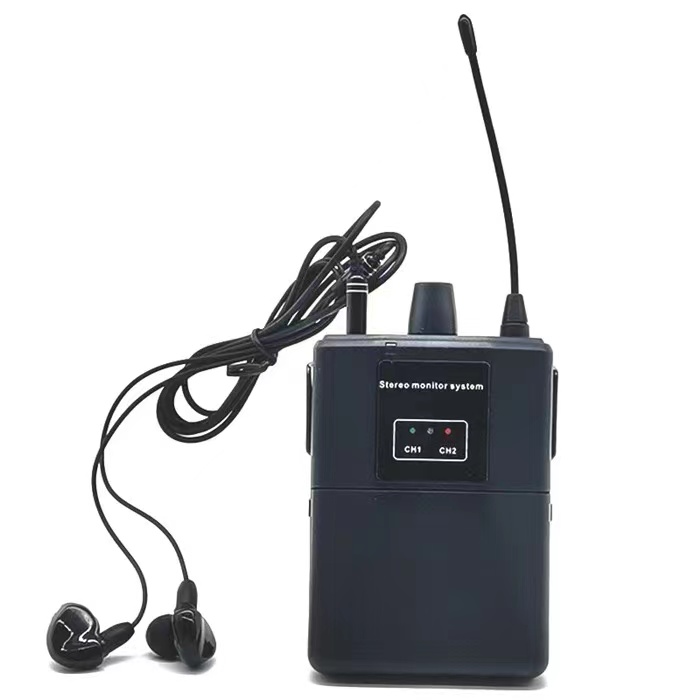

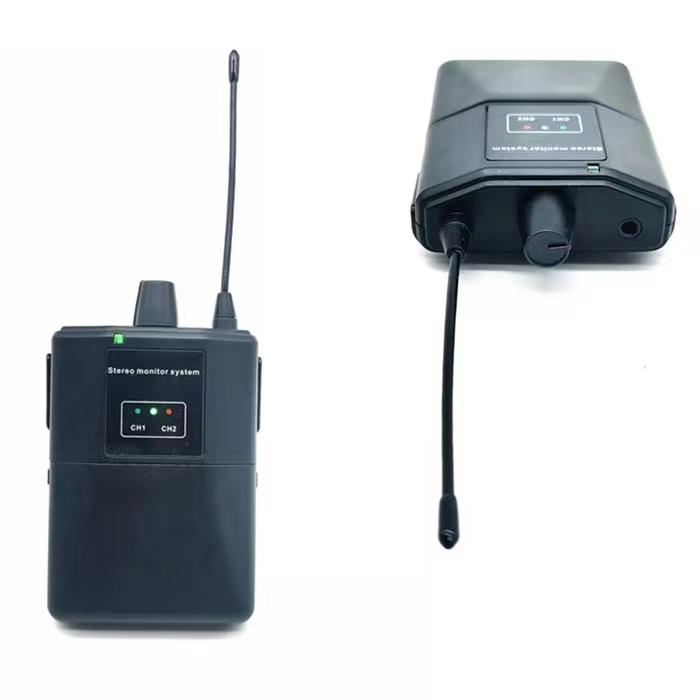

RX:RF carrier range: 650-655MHz

Number of channels: 2

Demodulation: digital demodulation (GFSK)

Sampling rate: 46.875kHz

Resolution: 24Bits

Audio processing mode: DSP

Audio response: 20-20KHz

FM mode: Manual

Audio output power: 80 MW (1kHz @ < 1% distortion, peak power, @ 32 Ω, 80 MW)

Minimum load impedance: 16 Ω

Headphone output: 3.5 mm (1 / 8 inch) stereo

Audio dynamic range: 110dB + A(200kohm)

Audio total harmonic distortion: – 94db

Receiving sensitivity: < – 95dB

Working current: 3V 100 ± 10mA

Battery life: 4-6 hours (continuous use) No. 5 battery (depending on battery capac

ity and headset output power)

Operating temperature range: – 30 ° C to 85 ° C
