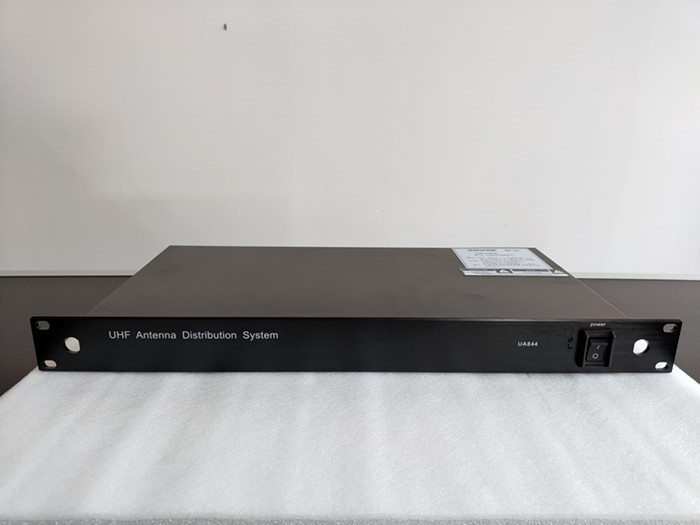

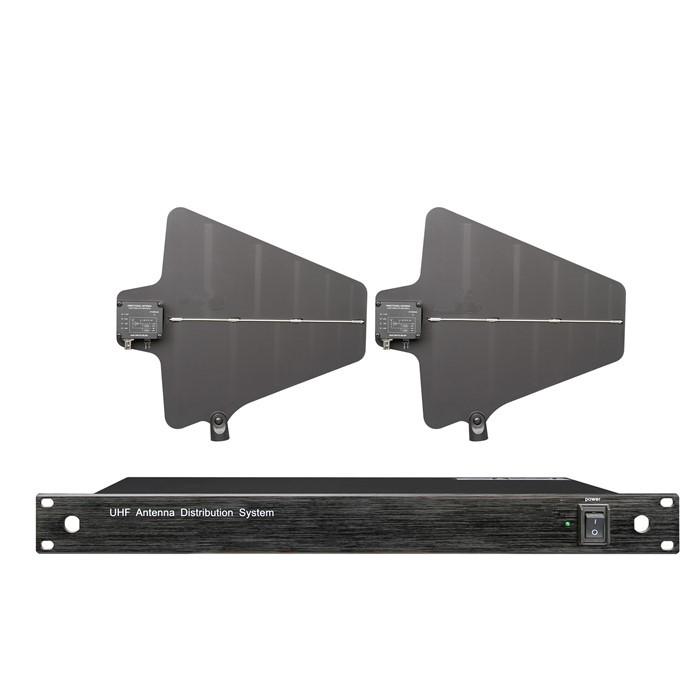

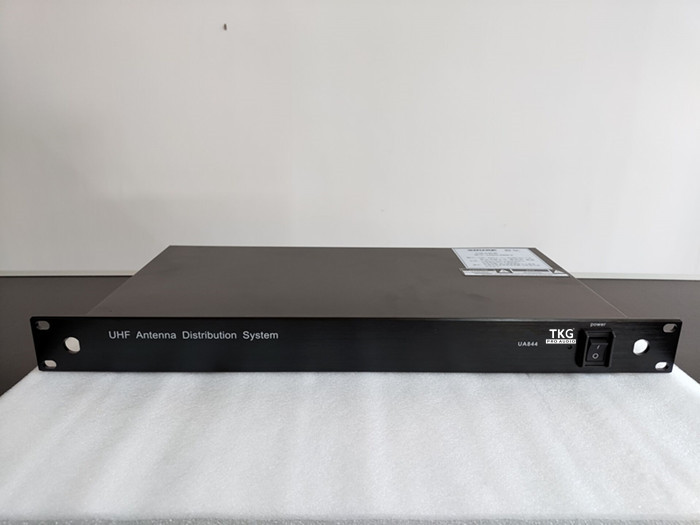

The Model UA844 is an amplified, UHF Antenna Distribution System that expands a wirelessmicrophone system by splitting one pair of antennas to multiple U4, UR4, ULXD4, ULXD4D, or ULXD4Q wireless receivers. It also amplifies RF signals to compensate for insertion loss due to splitting signal power tomultiple output connectors. Each UA844 allows up to four receivers to use the same antennas. CASCADE connectors allow connections to a fifth receiver or a second UA844.

Expandability. The UA845 UHF Antenna Distribution System is designed for large UHF, UHF-R, or ULX-D wireless systems. Each unit allows up to four wireless receivers to use the same two antennas, and the CASCADE ports allow connection to a fifth receiver or a second UA844.

Compatibility. The UA844 is compatible with all UHF, UHF-R, and ULX-D wireless microphonereceivers operating within a compatible frequency range (see UHF Carrier Frequency Ranges in the Specifications section).

CASCADE Ports. Two 50 Ω, BNC-type antenna CASCADE ports allow an additional UA845 unit or a fifth wireless receiver. A large wireless system can be run off of a single pair of antennas.

Power OUTPUT and OUT Connectors for UHF and UHF-R Wireless systems. Up to five U4 or UR4 receivers can be daisy-chained and powered from a single source via the Power OUTPUT connectors. DOES NOT APPLY TO ULX or ULX-D.
