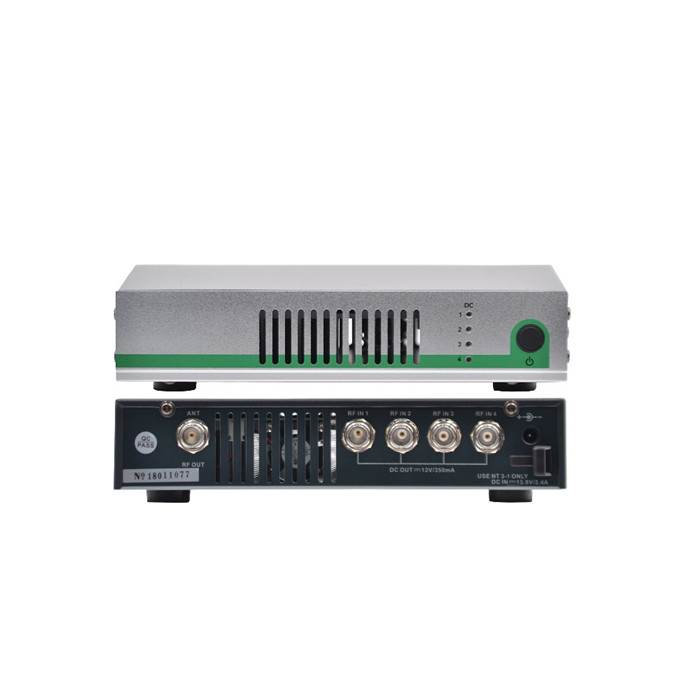

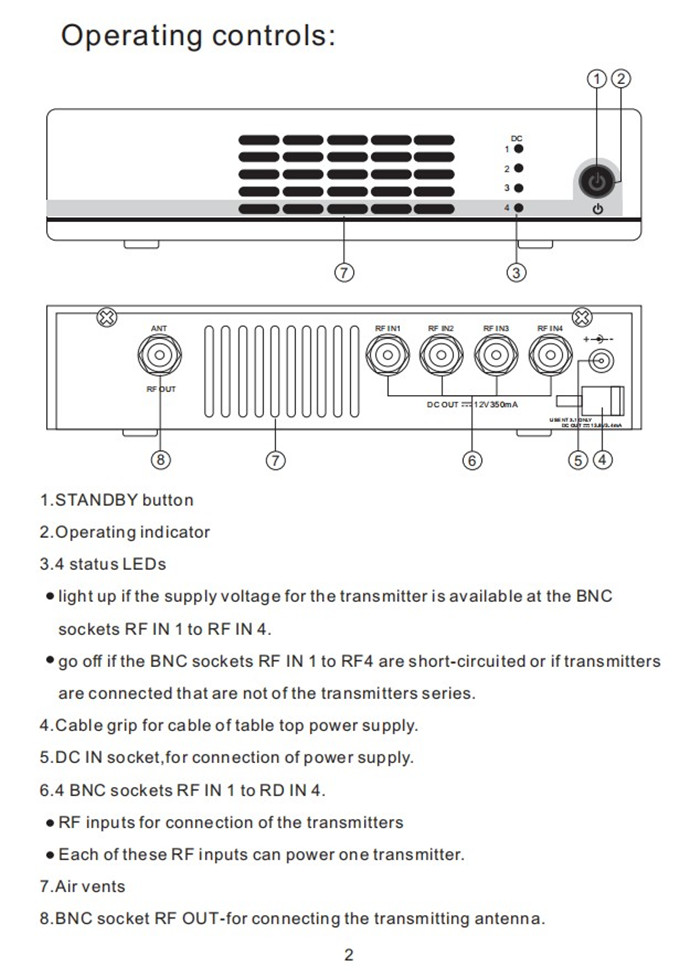

The active transmitter combiner is the multi-channel equipment that use the

common antenna.

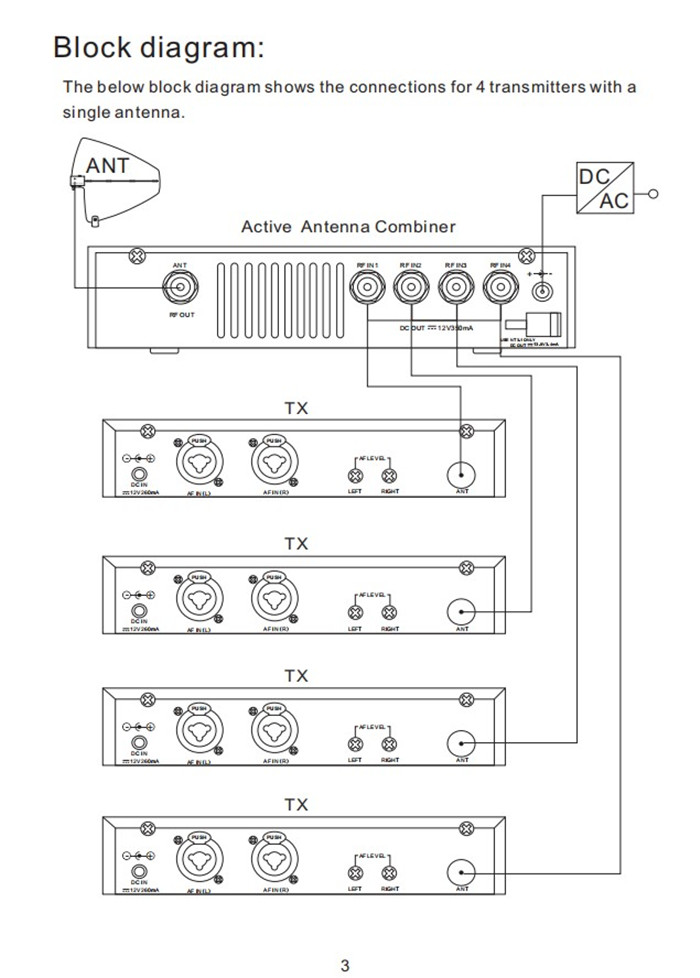

With the active transmitter combiner , the signals of up to four type transmitters

of wireless in ear monitor can be combined onto a single antenna.Also can

constitute the antenna arrays with connecting four antenna to insure the

antenna full precision coverage.

The four high frequency antenna of input insure the input signal can connect

the common output and can not be receded.

The active transmitter also can be power supply for four transmitters at most

or antenna meanwhile by the BNC input socket.

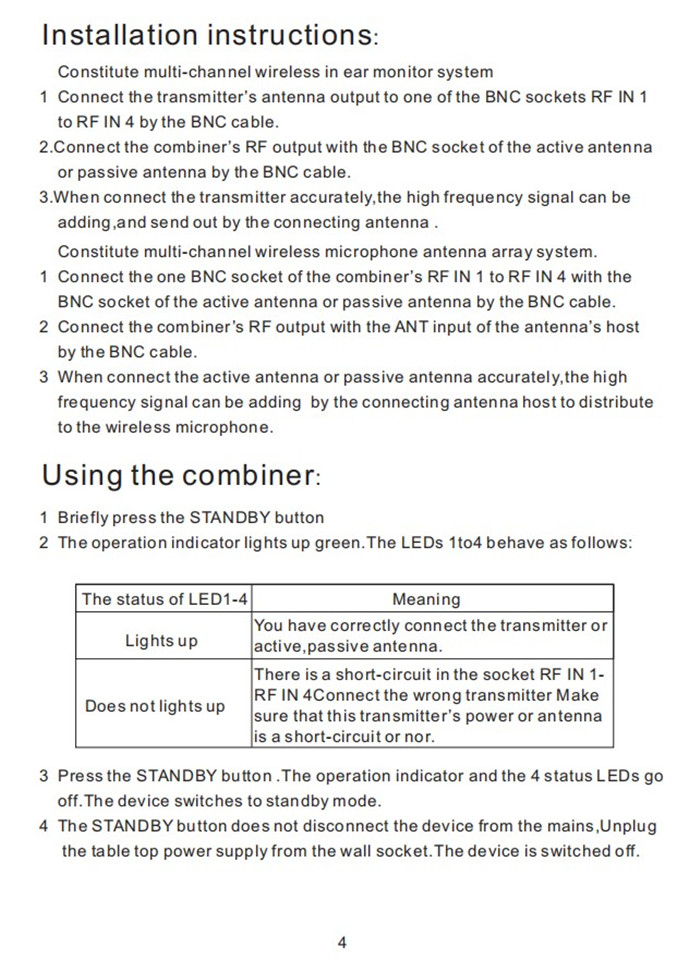

The active transmitter combiner is suitable for the following areas of application:

l Multi-channel monitoring systems for stage use.

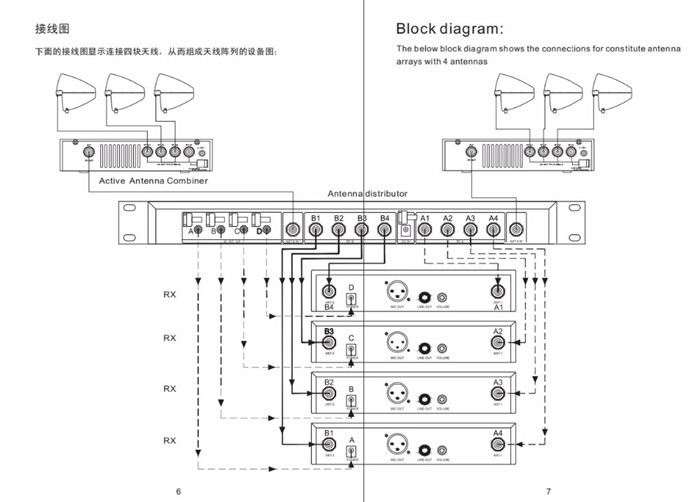

l Multi-channel wireless microphone antenna arrays for stage use

Antenna Combiner:

Operates up to four wireless monitoring transmitters from the series using one shared antenna.

Frequency range : 450~960MHzThrough attenuation:0db±1dBHigh frequency input power:The max input 30mW of Each endImpedance:50ΩPower DC : 12V DC 3AThe range of the working temperature:-10℃ to+55℃Dimension of the case:212x168x43mmWeight:1470g

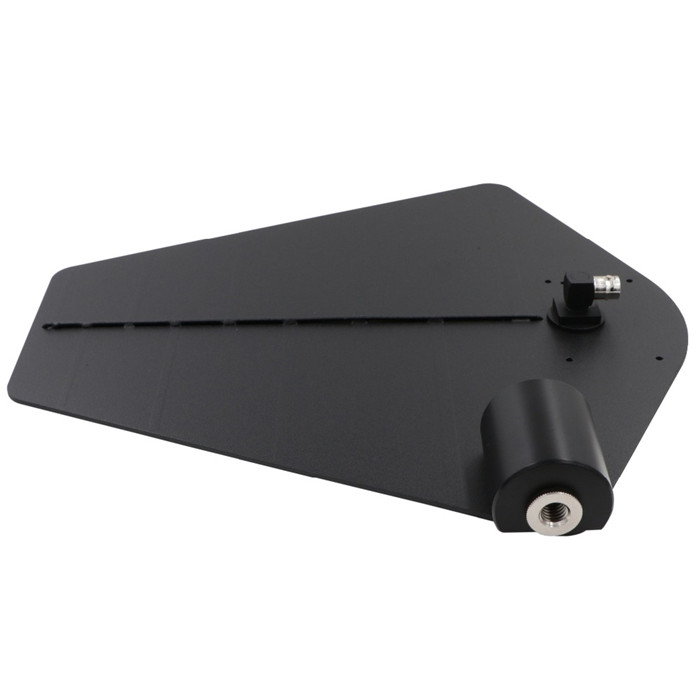

Passive directional antenna

Passive directional antenna. Transmitting and receiving
antenna.
Frequency range: 450-960 MHz
Apex angle: approx. 100°
Front-to-back ratio: ≥ 14 dB

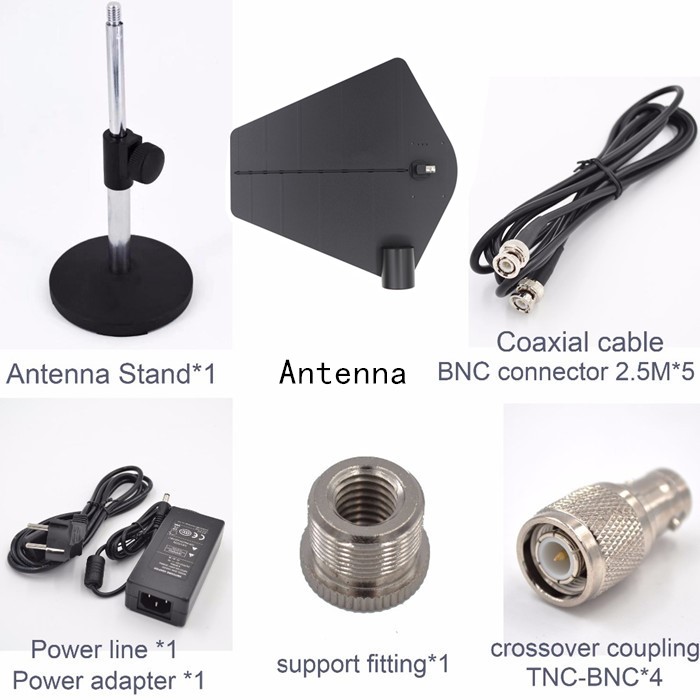

Spare parts list:

1.Power line x1

2.Power adapter x1

3.Coaxial cable BNC connector 2.5M x5

4.standx1
