Important safety instructions
l Please read the instruction carefully.
l Heed all warnings and follow all instructions in this instruction manual.
l Clean only with the soft cloth.
l Servicing is required if the device has been damaged in any way,liquid
has been spilled,objects have fallen inside,the device has been exposed
to rain or moisture,does not operate properly or has been dropped.
l Warning:To reduce the risk of fire or electric shock,do not use the device
l near water and do not expose it to rain or moisture.Do not place objects
l filled with liquids on the device.
l Do not block any ventilation openings.
l Do not install the device near any heart sources
Products Feature

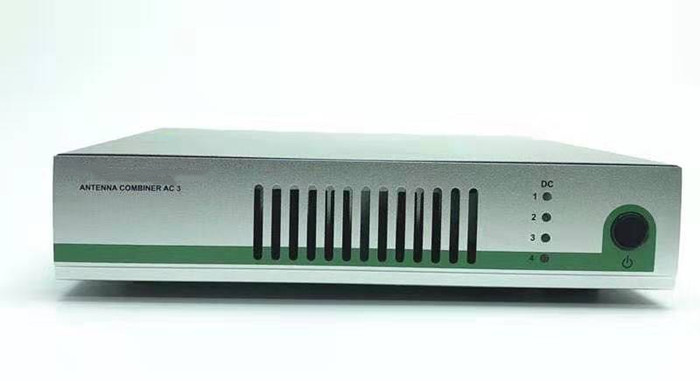

The active transmitter combiner is the multi-channel equipment that use the
common antenna.
With the active transmitter combiner , the signals of up to four type transmitters
of wireless in ear monitor can be combined onto a single antenna.Also can

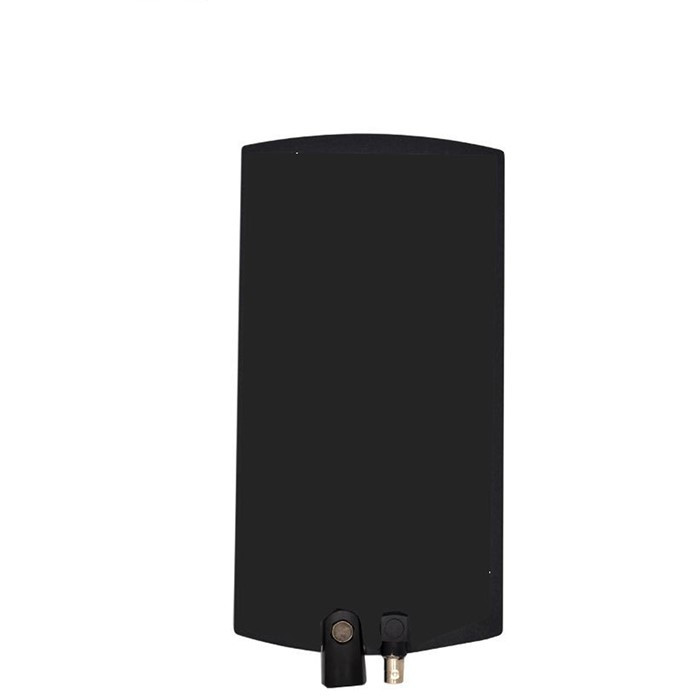

constitute the antenna arrays with connecting four antenna to insure the
antenna full precision coverage.
The four high frequency antenna of input insure the input signal can connect
the common output and can not be receded.
The active transmitter also can be power supply for four transmitters at most
or antenna meanwhile by the BNC input socket.
The active transmitter combiner is suitable for the following areas of application:
l Multi-channel monitoring systems for stage use.
l Multi-channel wireless microphone antenna arrays for stage use
Technology index:
Frequency Range 500-950MHz
Distribution attenuation 0dB(±1dB)
RF input power max.30mW per inpu
Impedance 50Ω
Supply voltage 12V DC 3A
Operating temperature range -10°C to +55°C
Dimensions of housing 212*168*43mm
Weight 1470g

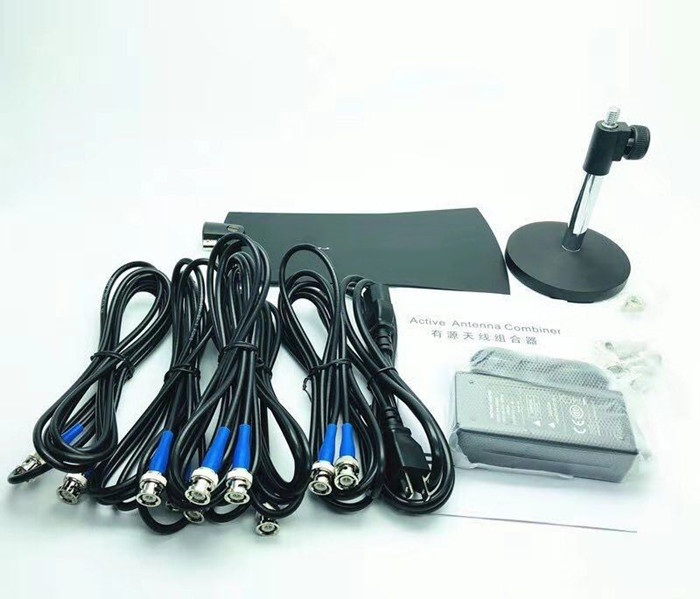

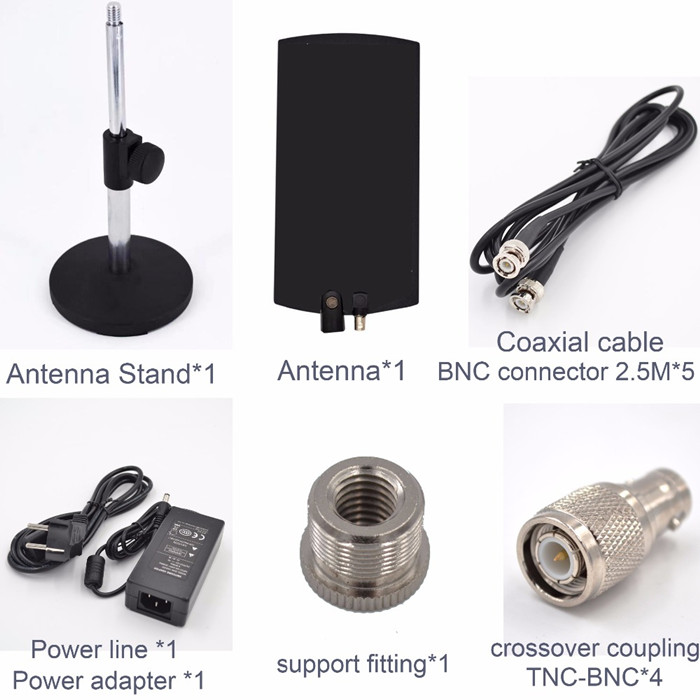

Spare parts list:
1.Power line x1
2.Power adapter x1
3.Coaxial cable BNC connector 2.5M x5

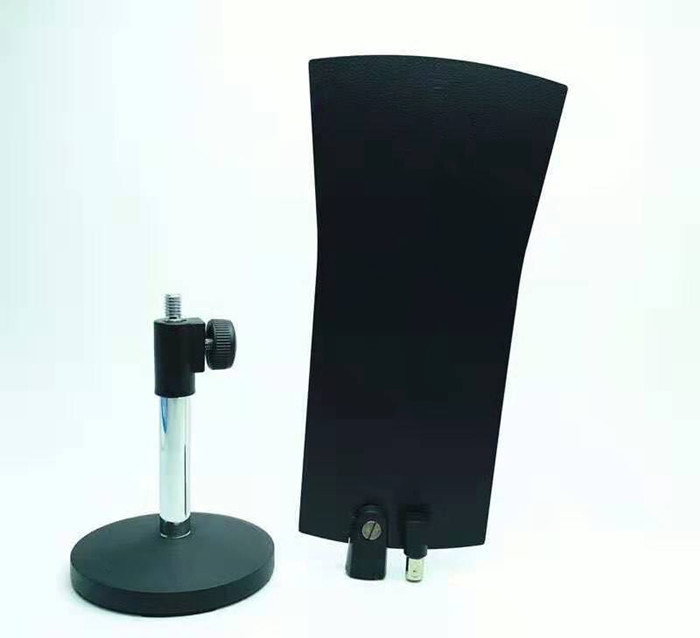

4.standx1
