Frequency Response (-5dB) 53 Hz – 19 Khz (±5dB)
Max SPL (peak) 132 dB (calculated)
Sensitivity (1W/1m) 104 dB
HF driver 1 x 3” HF Compression Driver

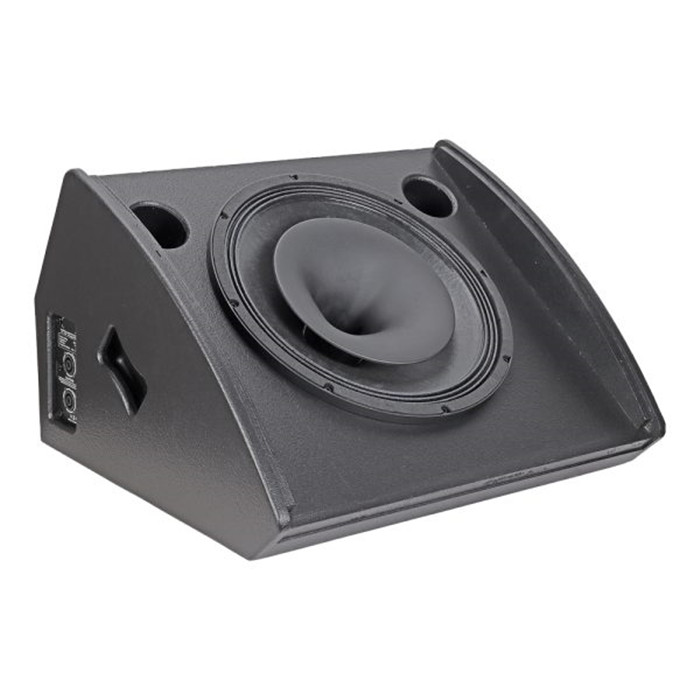

LF driver 1 x 15” long excursion ferrite
Impedance 8 Ohm
Nominal power 600 W
Program power 1200 W
Peak power 2400 W
Connectors 2x NL4 Speakon
Dimensions (WxHxD) 590x525x352 mm
Net weight 23 kg
Shipping weight 25.5 kg
Mounting Mounting Floor placement
Enclosure materials Plywood;Water-based paint

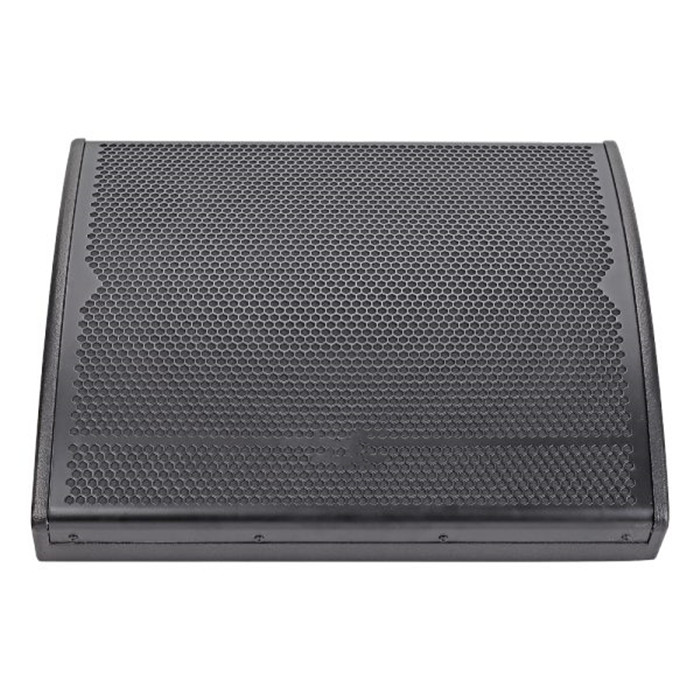

Grill Steel grill, polymere protective net
 |
 |
