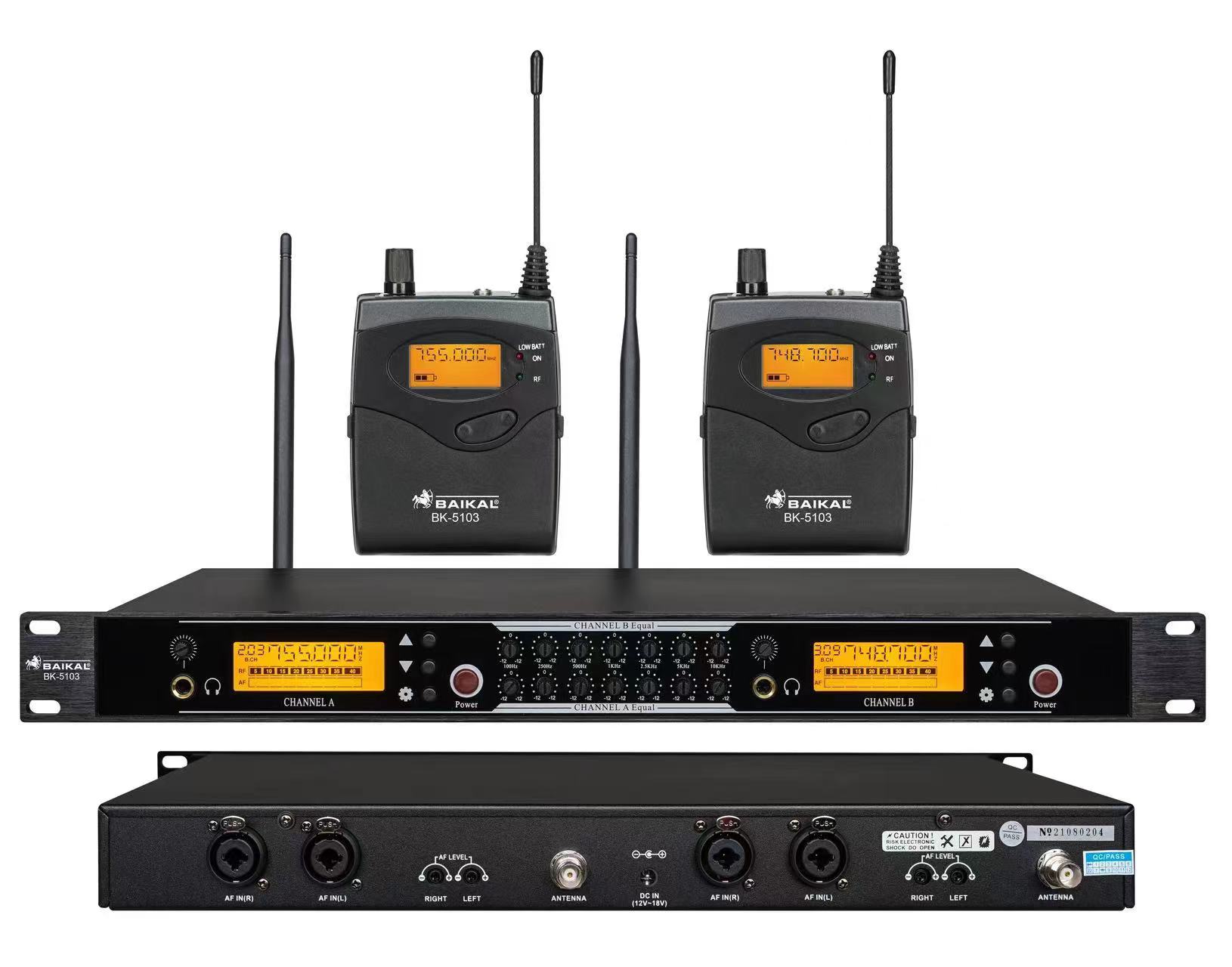

TKG SR-5103 In Ear Monitor System 2 Channel 2 Bodypack Monitoring with in Earphone Wireless best in ear monitors for singers
Package Include:
Transmitter × 1
Bodypack Receiver × 2/3/4/5/6
Earphone × 2/3/4/
Antenna × 2
Cable Line ×
4Power Adapter × 1
User Manual × 1

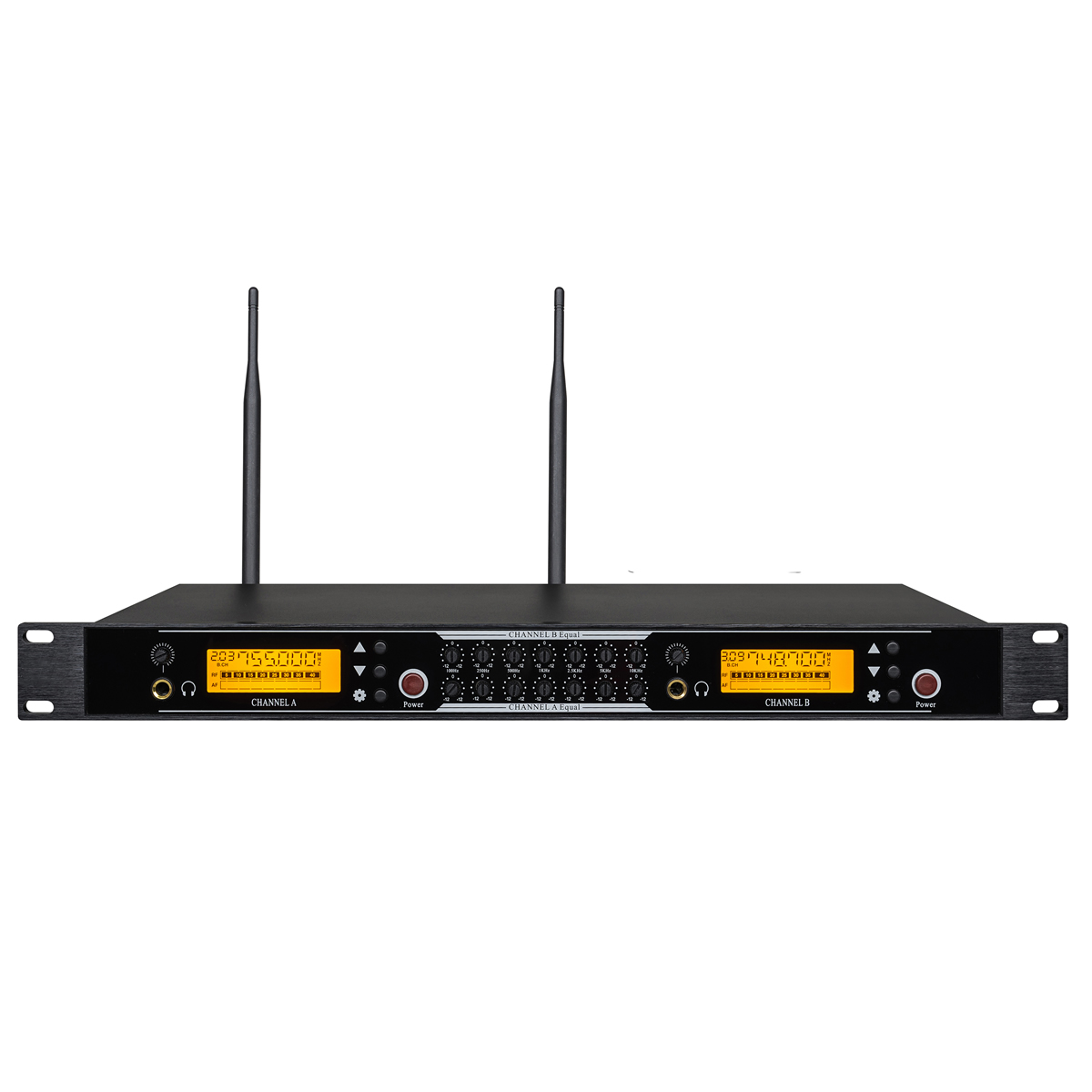

SR-5103 transmitter parameters:
Bandwidth: 740-771.6MHz
Number of channels: 40
Transmit power: 100mW
Audio input interface: XLR, Φ6.3mm duplex
Power consumption: DC 12V/600mA
Antenna interface type: TNC
Frequency Response: 50Hz – 15kHz (±3 dB)
Oscillation method: PLL
Working temperature: -10ºC~40ºC

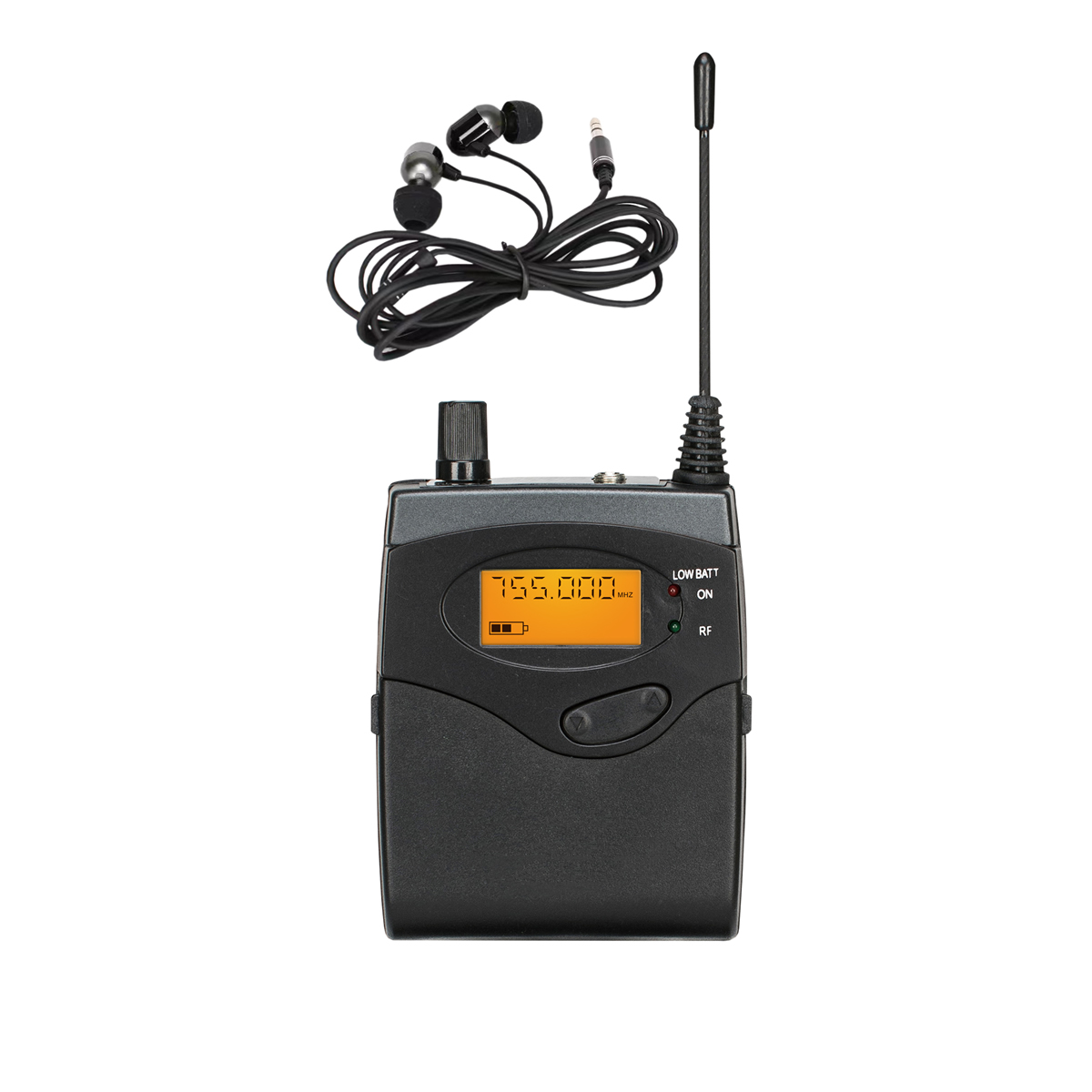

SR-5103 Receiver:
Band Range: 740-771.6MHz
Number of channels: 40
Receive sensitivity: <-96dBm
Frequency Response: 50Hz – 15kHz (±3 dB)
Power consumption: 3V/110mA±10mA
Power supply mode: two 1.5V AA batteries
Headphone output interface: Φ3.5mm
Headphone output power: RL=32Ω, 30mW
Working temperature: -10ºC~40ºC
