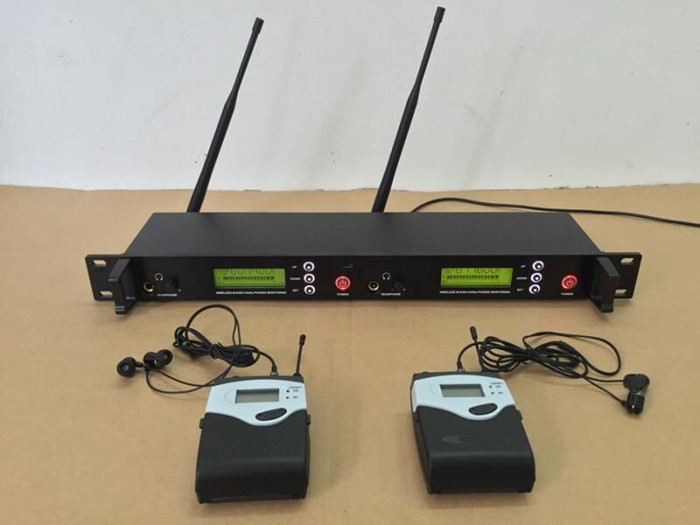

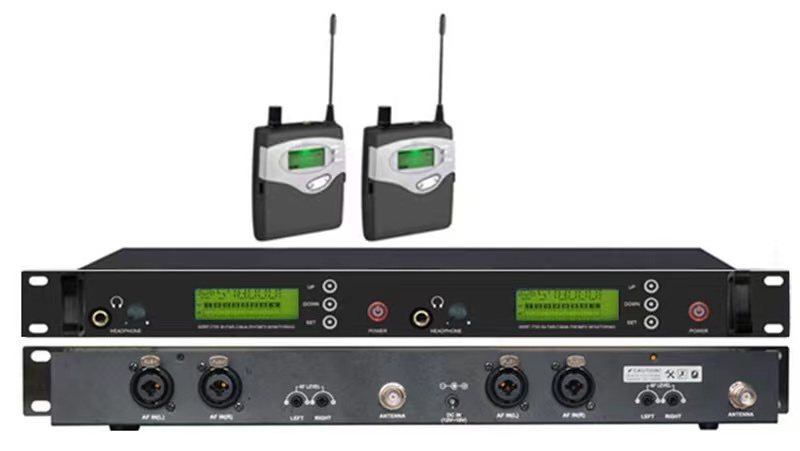

Technical parameters

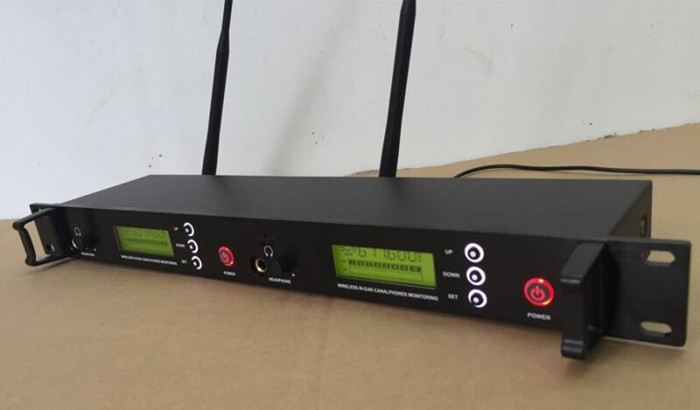

Chassis specification: standard 1U
Chassis material: metal panel and chassis
Band width: UHF
572-606 MHZ
606-613.8 MHz
798-830 MHZ
Three frequency bands [optional]
Frequency interval: 25MHz
Preset channel: set 6 sets for group 96
Launch the output power: 100 mw (50 Ω)
Audio input: XLR and phi 6.3mm compound socket
Headphone output: phi 6.3mm stereo socket, volume adjustable
16 Ω headphones load impedance: p
Current consumption: DC 12V/250mA
Antenna output that TNC receptacle (50 Ω)

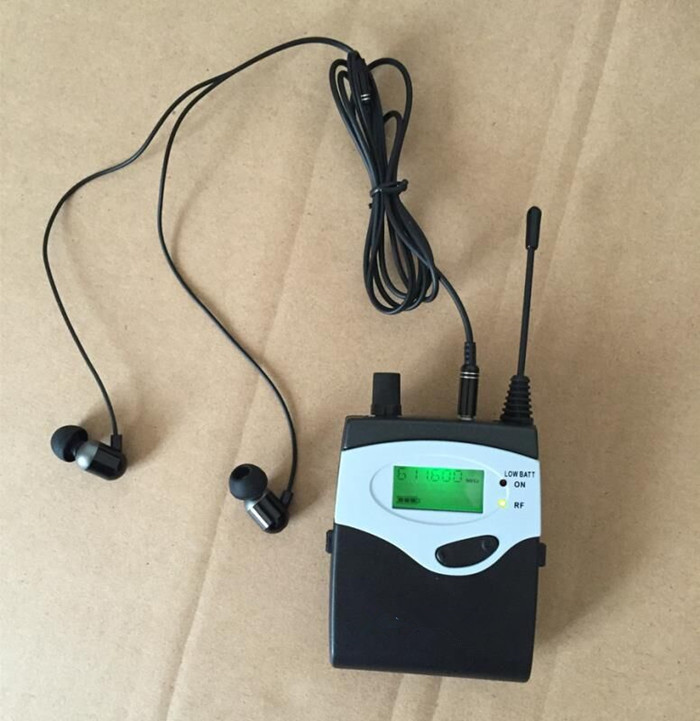

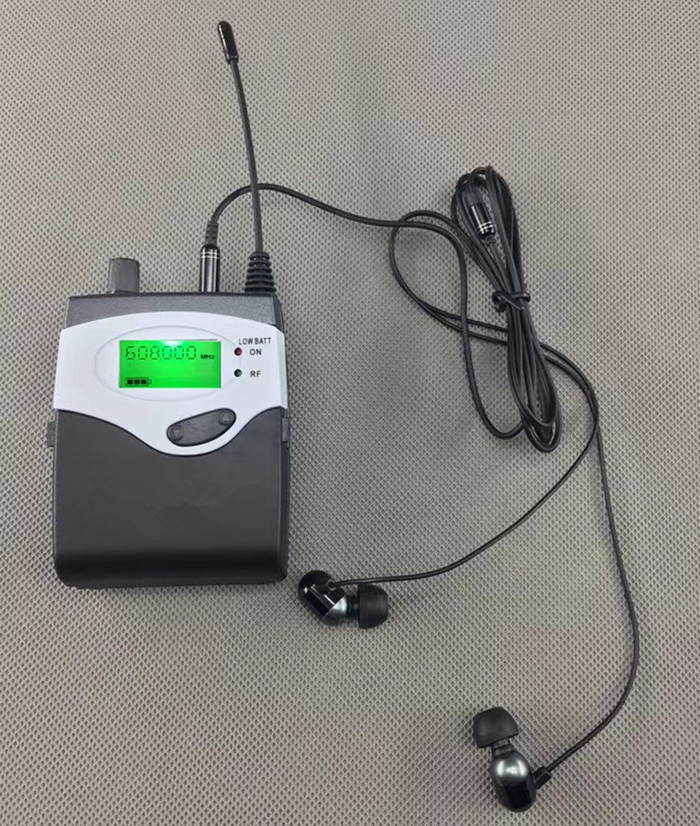

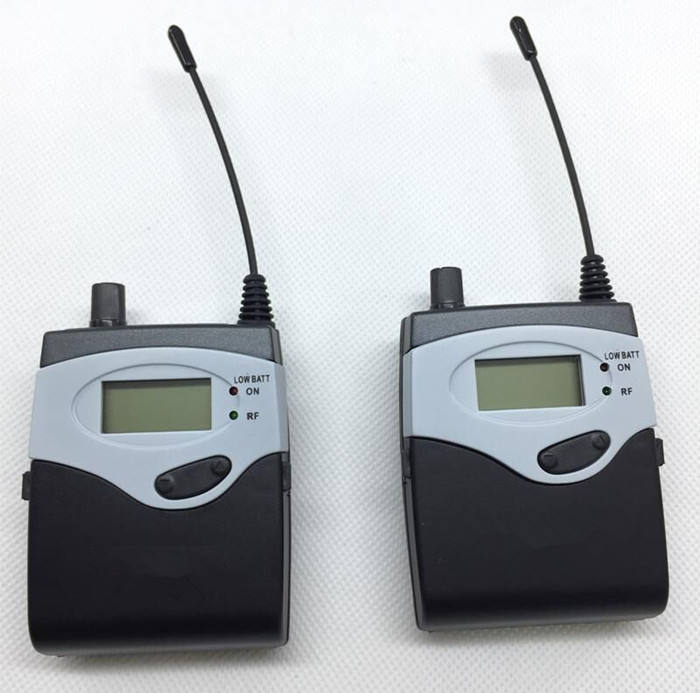

Technical index of receiving device:
Oscillation mode: PLL phase locking frequency synthesis
Band width: UHF572-830MHZ
Frequency interval: 25MHz
Preset channel: set 6 sets for group 96
Operation mode: manual adjustment
Receiving mode: single tuning
Comprehensive frequency response: 80Hz~15KHz + 3dB
The output power (32 Ω) : 2 x 35 mw @ 1 KHZ
16 Ω headphones load impedance: p
Output socket: phi 3.5mm stereo headphone socket
Power box: 5 (AA) battery two
